Description :

Rack mount patch panel is mainly used for connection and storage between optical fiber cable and pigtail in equipment, it can be wall mounted and floor standing installation. The box body is made of high quality cold rolled steel,electrostatic spraying, the appearance is beautiful, and theoperation is convenient.

Application:

Sliding rack mount patch panel integrates the 3 functions of fiber fusion, storage and distribution.It’s used widely in local end main cable net of fiber optic communication area. And suitable for the FTTB, FTTH system.

Feature:

High quality cold rolled sheet forming, electrostatic powder spraying technology, smooth surface, not east to rust.

High strength sheet metal, long-term using is not easy to deformation.

The edges of metal parts are designed with rounded corners to avoid damage to cables.

The bottom plate is designed with sliding design, for the patch panel already installed on the cabinet, the wiring can be adjusted without removing the patch panel.

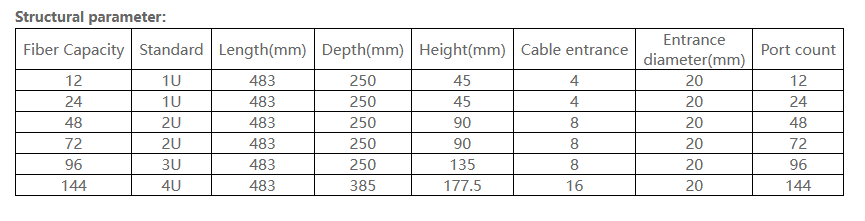

Product data:

Standard: 19” rack mount dimention.

With cable lead-in, fixation and protection devices.

There is enough room for fiber storage, ensure the bending radius is 15 times diameter of thecable.

Providing relevant accessories.(adaptor, pigtails ).

Environment:

The operating and storage temperature: - 45 ~ + 80 ℃.

Tolerable humidity: <95%.

The voltage resistance between the cable grounding device in the shell and the shell is >3000V(DV), which is tested in 1 minute without breakdown and no flashover.
